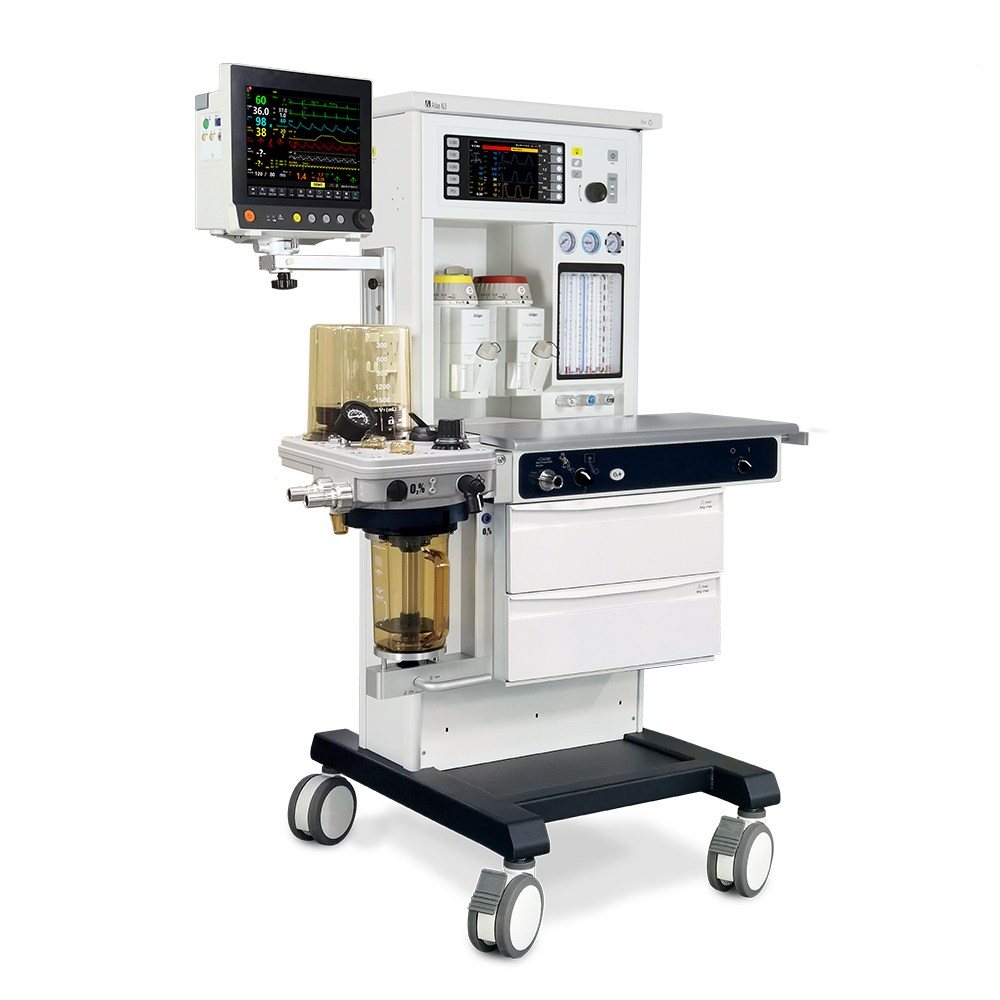

Northern Anesthesia Machine Atlas N3

Name: Northern Anesthesia Machine Atlas N3
Brand: NORTHERN
SKU: MPM-YK-8K-C-1-1-1
Availability: InStock

Brand: NORTHERN

Original price was: 1,370,000.00 ₹.Current price is: 550,000.00 ₹.Piece

exclusive of all taxes

• 8.4″(12.1″ for optional) color TFT screen, optional touch screen;
• User friendly interface;
• Tidal volume 10~1500 ml , optional choice 5~1500 ml;
• Up to 6 flow tubes for 3 gas (optional full-electronic control and
electronic flow meter);
• PPSU/Metallic material of breathing circuit;
• By-pass Tech for soda lime canister;
• All ventilation modes to satisfy neonate, pediatric and adult patients;
• Integrated breathing circuit with built-in heater;
• Highly visible ACGO.

Original price was: 1,370,000.00 ₹.Current price is: 550,000.00 ₹.Piece

Check Availability At

Compare

Add to wishlist

Technical Specifications

Display	8.4" (12.1" for optional) color TFT screen, optional touch screen
Gas Supply	O2, N2O, AIR
Selectatec Bar	Dual Positions
Mechanical Flowmeter	6 Flow Tubes for 3 Gas
By-Pass	Standard
Ventilator Mode	V-CMV, V-SIMV- P-CMV, P-SIMV, PSV, Manual/Spont
Spirometry Loop	P-V, P-F, F-V, Reference Loop
Li-ion Battery	1 Battery, 4800mAh, Optional (2 Batteries, 9600mAh)
Tidal Volume(Vt)	10~1500 ml, Optional Choice 2~1800 ml
Inspiratory Pressure (PINSP)	5~70 cm H2O
Respiratory Frequency (FREQ)	5~100 bpm
Waveforms	Upto 3 waveforms, User Configurable
Auxiliary Power Outlets	3
Built-In-Heater	Standard
O2 Cell	Standard

Attachments

Wheels	4 Wheels (125mm) with Separate Brakes
Drawers	2 Push-Pull Drawers are Provide, 3 Drawers are Optional
Reading Lamp	LED Light Included

Optional

Gas Monitor Module	Optional Includes CO2 and AG Module
AGSS	Optional
Vaporizer	Optional (Drager/Penion/Northern)
Patient Monitor	Optional
Suction Device	Optional
Spare Cylinder Yoke	Optional (O2, N2O)

Dimension & Weight

Height (With Casters)	1408 mm (8 inch) \| 1478 mm (12 inch)
Width	988 mm
Depth	706 mm
Safe Shelf Loading	25 kg +/- 0.5 kg

Import & Marketed By

Importer	Medimages Medical Systems Pvt. Ltd.
Address	B-30, DSIIDC Complex, Patparganj Indsutrial Area, New Delhi-110092
Phone	+91 94038 93282
Email	care@medimages.in
