BYOND Hopefusion Infusion Pump

Brand:

Original price was: 43,090.00 ₹.Current price is: 25,999.00 ₹.Piece

exclusive of all taxes

Warranty

Pay on
Delivery

Top Brand

7 Day's Replacement

Fast
Delivery

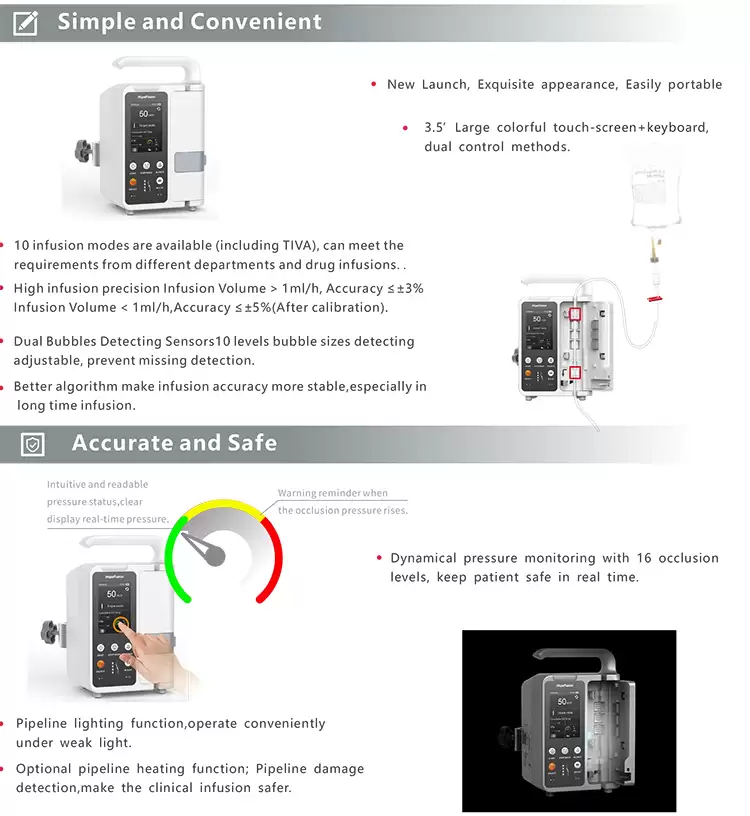

  • Integrated power management
  • Dual Bubbles detecting sensors
  • IP44 High-Level dust-proof and waterproof
  • Breakthrough infusion accuracy in long time infusion

Original price was: 43,090.00 ₹.Current price is: 25,999.00 ₹.Piece

Check Availability At //

Technical Specifications

Product Name

Byond Hopefusion Infusion Pump

Applicable Infusion Sets

1ml/15d, 1ml/19d, 1ml/20d, 1ml/60d

Flow Rate

ml/h mode: 0.1 ~ 2000ml/h (in 0.01 ml/h increments),
drop/min mode: 1 ~ (400ml/h*d/60) d/min (in 1d/min increments)

Wi-Fi

VP5: No
VP5 Air: Yes
VP5 Pro: Optional

Pressure Level

13 Level

BOLUS

BOLUS rate: 0.1 ~ 2300ml/h (in0.01 ml/h increments)
VTBI (volume to be infused):0.1 ~ 100 ml (in 0.01 ml increments)

FF (Fast Forward)

FF rate: 0.1 ~ 2300ml/h  (0.01ml/h increments),
VTB (Volume to be infused) 0.1 ~ 9999.99 ml (in 0.01 ml increments)

VTBI

0.1 ~ 9999.99ml (in 0.01ml increments)

Cumulative Infusion Volume

0.1 ~ 9999.99ml (in 0.01ml increments)

Rate (ml/h) accuracy

ml/h mode: ≤± 5% (after calibration)
Drop mode: ≤± 3% (after calibration)

Occlusion Pressure

13 occlusion pressure levels (10, 20, 30, 40, 50, 60, 70, 80, 90, 100, 11, 120, 130) kpa

Alarms Information

Near Infusion End, Infusion Finished, Standby Task Finished, Upstream Occlusion, Downstream Occlusion, KVO completed, Door Opening, Air-in-Line, Forgotten Operation, Low Battery, Battery Empty, Abnormal Running State, Equipment Failure, Power Failure, Replace Tube, Drop Sensor is pulled out, Infusion Set Mismatch, Abnormal Heating (Optional), Impending Occlusion (Optional), Empty Bottle, Battery Disconnected Singla Interruption, Tube is to Blocked (Optional>) Set uncalibrated etc.

Product Dimension

Dimension

147mm (L) ×195mm (W) × 235mm (H)

Weight

1.8kg (net weight)

Net Quantity

Box Contain 1 Piece of Infusion Pump, 1 Power Cable, 1 Stand Clamp

Power Specification

Power Source

AC 100V ~ 240V, 50/60Hz; Internal rechargeable Li battery, capacity;1,600mAh, 4 hours internal battery backup

Power Consumption

18VA

Operating Condition

Ambient temperature: +5℃ ~ +40℃;
Relative humidity: 20 ~ 90%
Atmospheric pressure: 86.0kpa ~ 106.0kpa

Import & Marketed By

Importer

Medimages Medical Systems Pvt Ltd

Address

B-30, DSIIDC Complex, Patparganj Industrial Area, New Delhi-110092

Email

info@medimages.in

Phone

8368342114

Product Description

Frequently Asked Questions

Infusion Pump, Operating Manual, Power Cord, Clamp

1 Year Warranty
